ALUMINUM TEALIGHT CUP MAKING MACHINES

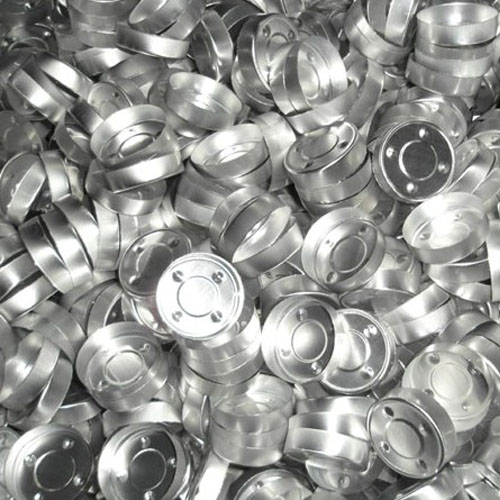

Aluminum tealight cup machine is used for producing tealight cups made of aluminum. Aluminum foil is drawn from roll into the machine and shaped into cups by stamping and deep drawing. The machine can make various sizes of tealight cup makings.
| technical data | punching machine for candle manufacturing of aluminum tealight cups |
| voltage | 380 V, 50 Hz, three phase |
| power | main motor 1.1 KW, feeding motor 0.2 KW |
| machine pressure | 16 Ton |
| machine model | double strokes |
| tealight cup type | straight edge / folded edge |
| bed dimension (LxW) | 400×240 mm |
| bed height | 320 mm |
| working speed | 120 strokes per minute |
| ouput | 14400 pcs / hour |
| packing dimension (LxWxH) | 1160x850x2500 mm, 1760x640x1100 mm |
| machine weight | 800 kg |
